1-1/8" B8M CL2 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

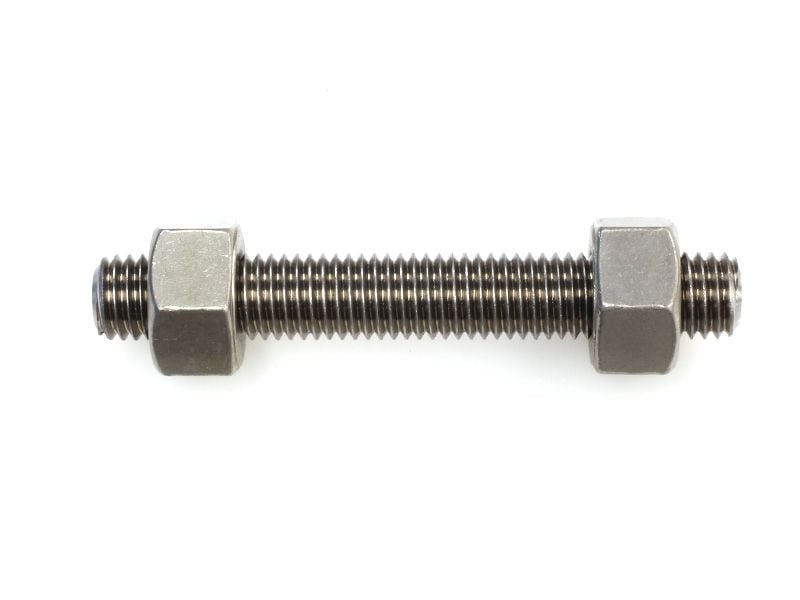

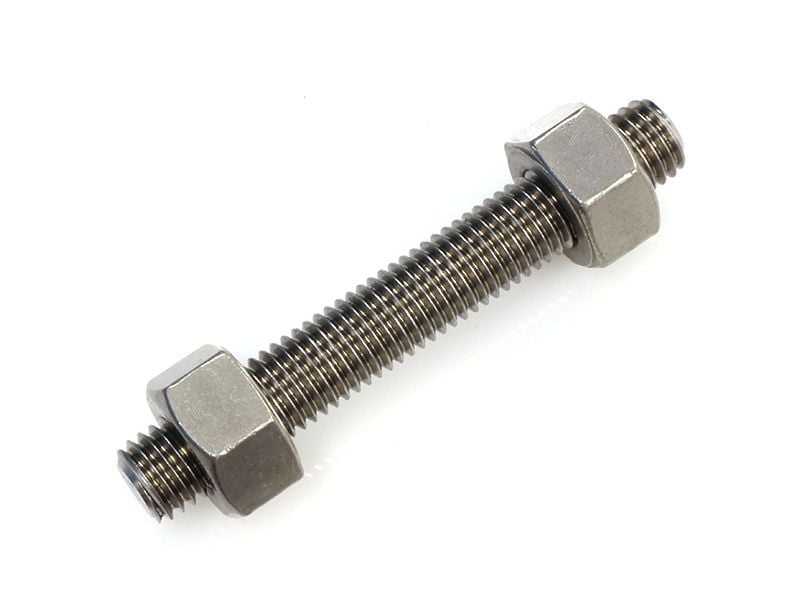

1-1/8" B8M Stud Bolt Kit 316 Stainless

Class 2 AISI 316 strain hardened studs.
Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x Gr8M stainless heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B8MSBN8C228

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1-1/8” x 235mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $86.90
1-1/8” x 240mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $87.85
1-1/8” x 250mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $89.70
1-1/8” x 255mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $90.70
1-1/8” x 260mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $91.60
1-1/8” x 265mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $92.55
1-1/8” x 275mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $94.45
1-1/8” x 280mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $95.45
1-1/8” x 285mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $96.35
1-1/8” x 290mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $97.30
1-1/8” x 300mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $99.25
1-1/8” x 305mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $100.15
1-1/8” x 310mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $101.10
1-1/8” x 320mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $103.00
1-1/8” x 325mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $103.95
1-1/8” x 330mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $104.90
1-1/8” x 335mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $105.85
1-1/8” x 345mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $107.75
1-1/8” x 350mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $108.70
1-1/8” x 355mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $109.65
1-1/8” x 360mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $110.60
1-1/8” x 370mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $112.45
1-1/8” x 375mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $113.40
1-1/8” x 380mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $114.40
1-1/8” x 385mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $115.35
1-1/8” x 395mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $117.25
1-1/8” x 400mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $118.20
1-1/8” x 405mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $119.10
1-1/8” x 415mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $121.10
1-1/8” x 420mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $122.00
1-1/8” x 425mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $122.95
1-1/8” x 430mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $123.90
1-1/8” x 440mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $125.85
1-1/8” x 445mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $126.75
1-1/8” x 450mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $127.70
1-1/8” x 455mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $128.70
1-1/8” x 465mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $130.55
1-1/8” x 470mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $131.50
1-1/8” x 475mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $132.40
1-1/8” x 485mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $134.35
1-1/8” x 490mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $135.30
1-1/8” x 495mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $136.30
1-1/8” x 500mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $137.20
1-1/8” x 510mm UN8 B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $139.05

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	1-1/8"
Thread Type	UN8
Bolt / Stud Property	ASTM A193 B8M Class 2 (AISI 316) Strain Hardened
Nut Properties	ASTM A194 Gr 8M
Material / Finish	Stainless AISI 316 Steel
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1360.0280235	1-1/8” x 235 mm	AISI 316	655 MPa	450 MPa	1.529
1360.0280240	1-1/8” x 240 mm	AISI 316	655 MPa	450 MPa	1.55
1360.0280250	1-1/8” x 250 mm	AISI 316	655 MPa	450 MPa	1.593
1360.0280255	1-1/8” x 255 mm	AISI 316	655 MPa	450 MPa	1.615
1360.0280260	1-1/8” x 260 mm	AISI 316	655 MPa	450 MPa	1.636
1360.0280265	1-1/8” x 265 mm	AISI 316	655 MPa	450 MPa	1.657
1360.0280275	1-1/8” x 275 mm	AISI 316	655 MPa	450 MPa	1.7
1360.0280280	1-1/8” x 280 mm	AISI 316	655 MPa	450 MPa	1.722
1360.0280285	1-1/8” x 285 mm	AISI 316	655 MPa	450 MPa	1.743
1360.0280290	1-1/8” x 290 mm	AISI 316	655 MPa	450 MPa	1.765
1360.0280300	1-1/8” x 300 mm	AISI 316	655 MPa	450 MPa	1.808
1360.0280305	1-1/8” x 305 mm	AISI 316	655 MPa	450 MPa	1.829
1360.0280310	1-1/8” x 310 mm	AISI 316	655 MPa	450 MPa	1.851
1360.0280320	1-1/8” x 320 mm	AISI 316	655 MPa	450 MPa	1.894
1360.0280325	1-1/8” x 325 mm	AISI 316	655 MPa	450 MPa	1.915
1360.0280330	1-1/8” x 330 mm	AISI 316	655 MPa	450 MPa	1.937
1360.0280335	1-1/8” x 335 mm	AISI 316	655 MPa	450 MPa	1.958
1360.0280345	1-1/8” x 345 mm	AISI 316	655 MPa	450 MPa	2.001
1360.0280350	1-1/8” x 350 mm	AISI 316	655 MPa	450 MPa	2.022
1360.0280355	1-1/8” x 355 mm	AISI 316	655 MPa	450 MPa	2.044
1360.0280360	1-1/8” x 360 mm	AISI 316	655 MPa	450 MPa	2.065
1360.0280370	1-1/8” x 370 mm	AISI 316	655 MPa	450 MPa	2.108
1360.0280375	1-1/8” x 375 mm	AISI 316	655 MPa	450 MPa	2.13
1360.0280380	1-1/8” x 380 mm	AISI 316	655 MPa	450 MPa	2.151
1360.0280385	1-1/8” x 385 mm	AISI 316	655 MPa	450 MPa	2.173
1360.0280395	1-1/8” x 395 mm	AISI 316	655 MPa	450 MPa	2.216
1360.0280400	1-1/8” x 400 mm	AISI 316	655 MPa	450 MPa	2.237
1360.0280405	1-1/8” x 405 mm	AISI 316	655 MPa	450 MPa	2.258
1360.0280415	1-1/8” x 415 mm	AISI 316	655 MPa	450 MPa	2.301
1360.0280420	1-1/8” x 420 mm	AISI 316	655 MPa	450 MPa	2.323
1360.0280425	1-1/8” x 425 mm	AISI 316	655 MPa	450 MPa	2.344
1360.0280430	1-1/8” x 430 mm	AISI 316	655 MPa	450 MPa	2.366
1360.0280440	1-1/8” x 440 mm	AISI 316	655 MPa	450 MPa	2.409
1360.0280445	1-1/8” x 445 mm	AISI 316	655 MPa	450 MPa	2.43
1360.0280450	1-1/8” x 450 mm	AISI 316	655 MPa	450 MPa	2.452
1360.0280455	1-1/8” x 455 mm	AISI 316	655 MPa	450 MPa	2.473
1360.0280465	1-1/8” x 465 mm	AISI 316	655 MPa	450 MPa	2.516
1360.0280470	1-1/8” x 470 mm	AISI 316	655 MPa	450 MPa	2.537
1360.0280475	1-1/8” x 475 mm	AISI 316	655 MPa	450 MPa	2.559
1360.0280485	1-1/8” x 485 mm	AISI 316	655 MPa	450 MPa	2.602
1360.0280490	1-1/8” x 490 mm	AISI 316	655 MPa	450 MPa	2.623
1360.0280495	1-1/8” x 495 mm	AISI 316	655 MPa	450 MPa	2.645
1360.0280500	1-1/8” x 500 mm	AISI 316	655 MPa	450 MPa	2.666
1360.0280510	1-1/8” x 510 mm	AISI 316	655 MPa	450 MPa	2.709

Documents

1-1/8" UN8 B8M Class 2 Stud Bolt Kit A193/A194

1-1/8" B8M Stud Bolt Kit 316 Stainless
