3/4" B8M CL2 Stud Bolt Kit A193/A194

Skip to the end of the images gallery

Skip to the beginning of the images gallery

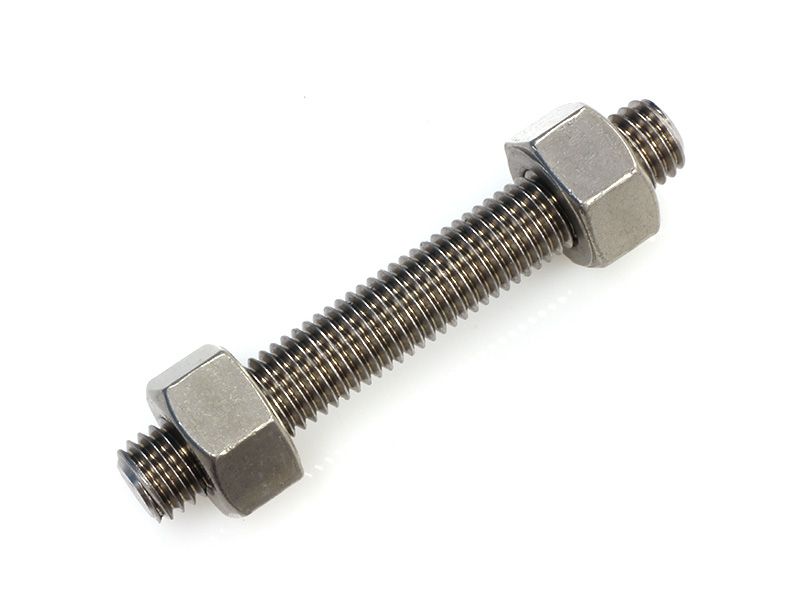

3/4" B8M Stud Bolt Kit 316 Stainless

Class 2 AISI 316 strain hardened studs.
Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x Gr8M stainless heavy hex nuts.
ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.

SKU 6B8MSBNUC220

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
3/4” x 50mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $10.55
3/4” x 60mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $11.05
3/4” x 65mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $11.25
3/4” x 70mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $11.45
3/4” x 75mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $11.65
3/4” x 80mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $11.85
3/4” x 90mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $12.30
3/4” x 95mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $12.55
3/4” x 100mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $12.75
3/4” x 110mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $13.15
3/4” x 115mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $13.30
3/4” x 120mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $13.60
3/4” x 125mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $13.80
3/4” x 130mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $13.95
3/4” x 140mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $14.45
3/4” x 145mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $14.65
3/4” x 150mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $14.85
3/4” x 160mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $15.25
3/4” x 165mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $15.50
3/4” x 170mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $15.65
3/4” x 180mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $16.10
3/4” x 185mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $16.35
3/4” x 190mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $16.55
3/4” x 195mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $16.70
3/4” x 200mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $16.95
3/4” x 210mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $17.40
3/4” x 215mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $17.60
3/4” x 220mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $17.80
3/4” x 230mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $18.25
3/4” x 235mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $18.45
3/4” x 240mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $18.65
3/4” x 250mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $19.05
3/4” x 255mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $19.25
3/4” x 260mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $19.55
3/4” x 265mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $19.70
3/4” x 275mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $20.10
3/4” x 280mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $20.30
3/4” x 285mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $20.60
3/4” x 290mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $20.75
3/4” x 300mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $21.20
3/4” x 305mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $21.35
3/4” x 310mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $21.65
3/4” x 320mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $22.05
3/4” x 325mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $22.25
3/4” x 330mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $22.40
3/4” x 335mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $22.65
3/4” x 345mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $23.10
3/4” x 350mm UNC B8M Studbolt A193 CL2, Gr8M A194 Nuts, Stainless AISI 316 From $23.30

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	3/4"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B8M Class 2 (AISI 316) Strain Hardened
Nut Properties	ASTM A194 Gr 8M
Material / Finish	Stainless AISI 316 Steel
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1360.0200050	3/4” x 50mm	AISI 316	760 MPa	655 MPa	0.273
1360.0200060	3/4” x 60mm	AISI 316	760 MPa	655 MPa	0.291
1360.0200065	3/4” x 65mm	AISI 316	760 MPa	655 MPa	0.3
1360.0200070	3/4” x 70mm	AISI 316	760 MPa	655 MPa	0.31
1360.0200075	3/4” x 75mm	AISI 316	760 MPa	655 MPa	0.319
1360.0200080	3/4” x 80mm	AISI 316	760 MPa	655 MPa	0.328
1360.0200090	3/4” x 90mm	AISI 316	760 MPa	655 MPa	0.347
1360.0200095	3/4” x 95mm	AISI 316	760 MPa	655 MPa	0.356
1360.0200100	3/4” x 100mm	AISI 316	760 MPa	655 MPa	0.365
1360.0200110	3/4” x 110mm	AISI 316	760 MPa	655 MPa	0.384
1360.0200115	3/4” x 115mm	AISI 316	760 MPa	655 MPa	0.393
1360.0200120	3/4” x 120mm	AISI 316	760 MPa	655 MPa	0.402
1360.0200125	3/4” x 125mm	AISI 316	760 MPa	655 MPa	0.412
1360.0200130	3/4” x 130mm	AISI 316	760 MPa	655 MPa	0.421
1360.0200140	3/4” x 140mm	AISI 316	760 MPa	655 MPa	0.44
1360.0200145	3/4” x 145mm	AISI 316	760 MPa	655 MPa	0.449
1360.0200150	3/4” x 150mm	AISI 316	760 MPa	655 MPa	0.458
1360.0200160	3/4” x 160mm	AISI 316	760 MPa	655 MPa	0.477
1360.0200165	3/4” x 165mm	AISI 316	760 MPa	655 MPa	0.486
1360.0200170	3/4” x 170mm	AISI 316	760 MPa	655 MPa	0.495
1360.0200180	3/4” x 180mm	AISI 316	760 MPa	655 MPa	0.514
1360.0200185	3/4” x 185mm	AISI 316	760 MPa	655 MPa	0.523
1360.0200190	3/4” x 190mm	AISI 316	760 MPa	655 MPa	0.532
1360.0200195	3/4” x 195mm	AISI 316	760 MPa	655 MPa	0.541
1360.0200200	3/4” x 200mm	AISI 316	760 MPa	655 MPa	0.551
1360.0200210	3/4” x 210mm	AISI 316	760 MPa	655 MPa	0.569
1360.0200215	3/4” x 215mm	AISI 316	760 MPa	655 MPa	0.579
1360.0200220	3/4” x 220mm	AISI 316	760 MPa	655 MPa	0.588
1360.0200230	3/4” x 230mm	AISI 316	760 MPa	655 MPa	0.606
1360.0200235	3/4” x 235mm	AISI 316	760 MPa	655 MPa	0.616
1360.0200240	3/4” x 240mm	AISI 316	760 MPa	655 MPa	0.625
1360.0200250	3/4” x 250mm	AISI 316	760 MPa	655 MPa	0.643
1360.0200255	3/4” x 255mm	AISI 316	760 MPa	655 MPa	0.653
1360.0200260	3/4” x 260mm	AISI 316	760 MPa	655 MPa	0.662
1360.0200265	3/4” x 265mm	AISI 316	760 MPa	655 MPa	0.671
1360.0200275	3/4” x 275mm	AISI 316	760 MPa	655 MPa	0.69
1360.0200280	3/4” x 280mm	AISI 316	760 MPa	655 MPa	0.699
1360.0200285	3/4” x 285mm	AISI 316	760 MPa	655 MPa	0.708
1360.0200290	3/4” x 290mm	AISI 316	760 MPa	655 MPa	0.718
1360.0200300	3/4” x 300mm	AISI 316	760 MPa	655 MPa	0.736
1360.0200305	3/4” x 305mm	AISI 316	760 MPa	655 MPa	0.745
1360.0200310	3/4” x 310mm	AISI 316	760 MPa	655 MPa	0.773
1360.0200320	3/4” x 320mm	AISI 316	760 MPa	655 MPa	0.773
1360.0200325	3/4” x 325mm	AISI 316	760 MPa	655 MPa	0.782
1360.0200330	3/4” x 330mm	AISI 316	760 MPa	655 MPa	0.792
1360.0200335	3/4” x 335mm	AISI 316	760 MPa	655 MPa	0.801
1360.0200345	3/4” x 345mm	AISI 316	760 MPa	655 MPa	0.82
1360.0200350	3/4” x 350mm	AISI 316	760 MPa	655 MPa	0.829

Documents

3/4" UNC B8M Class 2 Stud Bolt Kit A193/A194

3/4" B8M Stud Bolt Kit 316 Stainless
